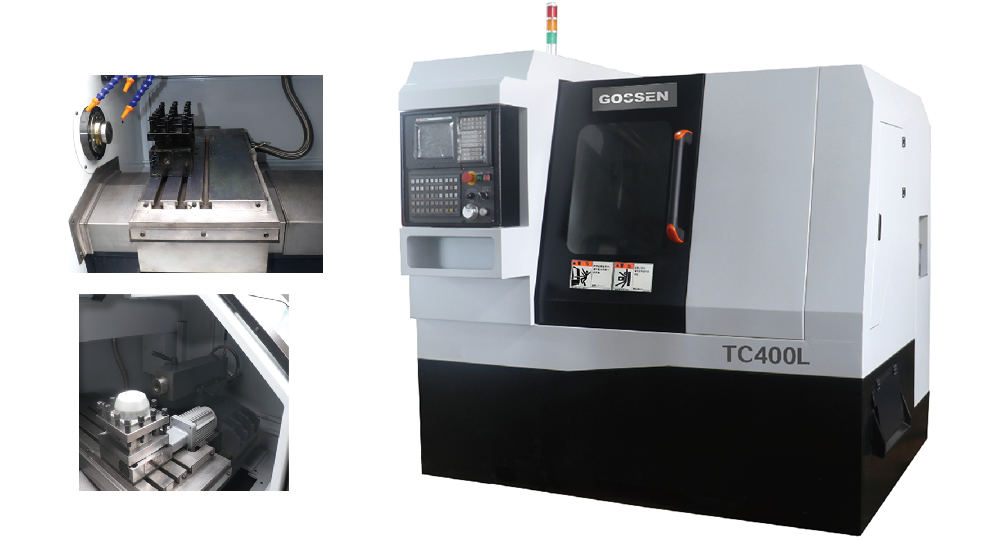

Machine tool is introduced
Machine tool is introduced
The main shaft adopts water-cooled structure,which has the adavantages of high rigidity, high speed, low inertia, fast dynamic response, low noise and little vibration.It is highly stable,big torque and no pulsation,so it can realize precise machining .
The use of spindle indexing function, can complete the car, milling, drilling, tapping, boring and other forming products.
|
Main technical parameters
|
|
Name
|
Project
|
TC400L
|
|
Processing range
|
Maximum rotation diameter(mm)
|
ø350
|
|
Maximum machining diameter (mm)
|
ø300
|
|
The maximum processing diameter of the X axis table top(mm)
|
ø160
|
|
Maximum processing length (mm)
|
350/450
|
|
spindle
|
Spindle / specifications
|
A5/6寸
|
|
Spindle hole diameter (mm)
|
ø63
|
|
Hollow tie rod bar diameter
|
ø45
|
|
X Z axis
|
X axis limit stroke (mm)
|
刀塔400/排刀600
|
|
Z axis limit stroke (mm)
|
400
|
|
Specification for X shaft screw rod
|
3010
|
|
Specification for Z shaft screw rod
|
4010
|
|
Linear guide rail of X-axis
|
30
|
|
Linear guide rail of Z-axis
|
45
|
|
X axis rapid traverse (m/min)
|
20
|
|
Z axis rapid traverse (m/min)
|
20
|
|
Tool
|
Tool number
|
/
|
|
Turret type
|
刀塔/排刀
|
|
Tool size (mm)
|
□ 20×□20
|
|
boring rod diameter(mm)
|
ø20
|
|
Appearance
|
Overall size（L*W*H)（mm）
|
1800*1400*1750
|
|
Net weight（kg）
|
1600
|
|
Accuracy
|
Two axis positioning accuracy (mm)
|
±0.005
|
|
Two repeat positioning accuracy (mm)
|
±0.003
|
|
Other
|
System
|
广数/凯恩帝
|
|
Main motor power (kW)
|
5.5
|
|
Reduction ratio of main motor
|
1：1
|
|
Spindle maximum speed (RPM)
|
4200
|
|
axis yaskawa electric power
|
1.2
|
|
axis yaskawa electric power
|
1.2
|
