Machine characteristics

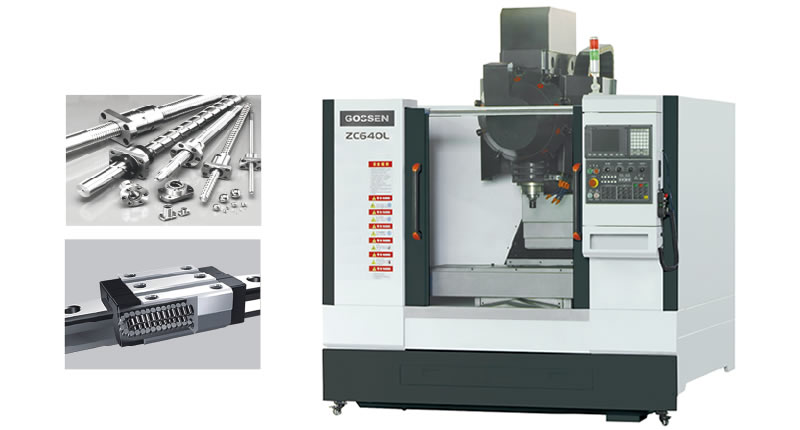

The machine adopts high strength resin sand casting, machining center wide guide rail base, screw rod adopts 3210/4010 double nut ball screw, AC servo motor drive.The machine tool has good rigidity, high accuracy and stability, and the system is equipped with USB and RS232 communication interface. It is suitable for processing all kinds of small and medium-sized parts with high precision and complicated shape.
MITSUBISHI, FANUC, optional allotment system of Taiwan new generation.
|
Main technical parameters
|
|
Name
|
Project
|
ZC425L
|
ZC640L
|
|
Workbench
|
Table size (L×W)（mm）
|
900×260
|
1200×420
|
|
T groove size（mm）
|
3-14×100
|
3-18×140
|
|
Maximum load of worktable(kg)
|
200
|
400
|
|
Stroke
|
X/Y/Z axis travel(mm)
|
450/270/400
|
600/400/420
|
|
Distance spindle nose to table(mm)
|
150-500
|
150-600
|
|
Spindle center to column guideway(mm）
|
280
|
425
|
|
Spindle
|
Spindle speed(rpm)
|
8000
|
8000
|
|
Spindle drive mode
|
皮带式
|
皮带式
|
|
Taper of spindle
|
BT30
|
BT30
|
|
Spindle motor
|
Spindle motor
|
3
|
3/6
|
|
Torque
|
额定19N.m最大36N.M
|
额定19N.m最大36N.M
|
|
Feed rate
|
axis cutting feed(mm/min)
|
10000/10000/10000
|
10000/10000/10000
|
|
Rapid traverse(mm/min)
|
36000/36000/36000
|
36000/36000/36000
|
|
Accuracy
|
Positioning accuracy（mm)
|
±0.005
|
±0.005
|
|
epeat positioning accuracy（mm）
|
±0.003
|
±0.003
|
|
Automatic tool changing system
|
Tool number
|
10/16
|
10/16
|
|
Tool changing side
|
随机
|
随机
|
|
Library type
|
夹臂式
|
夹臂式
|
|
Max. tool diameter(kg)
|
φ50
|
φ50
|
|
Max. tool weight(kg)
|
3.5
|
3.5
|
|
Max. tool length
|
160
|
160
|
|
Shank form
|
BT30
|
BT30
|
|
Tool change time
|
1.6
|
1.6
|
|
Electrical system
|
system
|
台湾新代
|
台湾新代
|
|
Drive motor X, Y, Z
|
1.2/1.2/1.8
|
1.8/1.8/3.6
|
|
Servo spindle (KW)
|
3
|
3/6
|
|
Other
|
Machine weight（kg）
|
2000
|
3000
|
|
Outline dimension（mm）
|
1800*1800*2200
|
2200*2200*2400
|
|
Air compressor demand kg/cm2
|
5-8
|
5-8
|
|
Ball screw X/Y/Z
|
2510/2510/3210
|
3210/3210/4010
|
|
Ball guide rail
X/Y/Z
|
25/25/30
|
35/35/45
|
