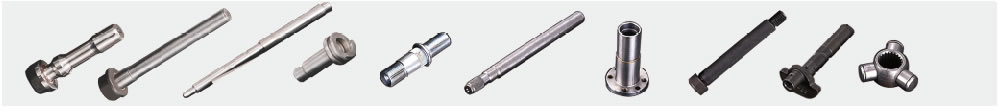

1, Cylindrical grinderis a double manipulator integrated automatic NC machining, forming, automatic feeding and unloading of an automatic cylindrical grinding , can effectively reduce labor.
2,The operation PLC control system, simple and convenient operation, wide working range, running machine imitate manual operation method, artificial action mechanical manipulator operation, automatic loading and unloading, greatly reducing labor, as well as to the staff's technical requirements reduced, the realization of a multi machine management mode.
3, V type dual manipulator model, dual manipulator can effectively solve the problem of low feed rate, V type dual manipulator, almost can be completed at the same time feeding and feeding action, greatly reduce the tedious and redundant manipulator action, effectively improve the efficiency and reduce the damage problems of products.
4, automatic feeding and unloading rack, according to the product made conveyor belt and chain conveyor form, so as to transport without obstacles, no bumps.
5, floating chuck is a double top as the foundation, to step up and driven changes with the changes of all products, has no effect on the precision grinding, precision without artificial floating chuck clamping products.
Maximum grinding diameter
|
200mm
|
机
械 手 |
浮动头
|
5.5-15MM
|
Maximum grinding weight’
|
500mm/750mm
|
触摸屏
|
7寸
|
|
Maximum workpiece weight
|
45kg
|
PLC
|
42点
|
|
Wheel dimension(OD*W*ID)
|
400*203*40
|
电压
|
220v
|
|
Grinding wheel linear velocity
|
45m/s
|
气压
|
4-6mpa
|
|
Headstock Speed
|
0-300转/分钟(无极限)0-300r/min(stepiess)
|
伺服电机
|
0.4kw
|
|
Headstock spindle taper hole
|
莫式4号
|
横向行程
|
2000mm
|
|
Tailstock spindle taper hole
|
莫式3号
|
上下料行程
|
200mm
|
|
The workbench maximum adjustment angel
|
Clockwise9°Anticlockwise5°Clockwise7° Anticlockwise3°
|
上料手指
|
20平行手指
|
|
X axis travel
|
180mm
|
下料手指
|
20八字开手指
|
|
Z axis travel
|
610mm/800mm
|
上料架
|
V型链条300mm*1000mm
|
|
Minimum feed resolutio
|
0.001mm
|
下料架
|
输送带300mm*1000mm
|
|
Total power
|
7kw
|
龙门架尺寸
|
1000mm*1700mm
|
|
Overal dimension(L*W*H)
|
2400*2000*1500 2800*2000*1500
|
上下料仓尺寸
|
800mmm*1000mmm*1100mm
|
